| Malzeme Adı | Türü | Çalışma Yüzeyleri | Kauçuk Tipi | Çap | Sabit Eleman | Fiyat |
|---|---|---|---|---|---|---|
| LN 104-12-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 12 | N/A |
$4.07
-%40
$2.44
|
| LN 104-19-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 19 | N/A |
$6.98
-%40
$4.19
|
| LN 104-9-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 9 | N/A |
$3.88
-%40
$2.33
|
| LN 104-10-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 10 | N/A |
$3.88
-%40
$2.33
|
| LN 104-14-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 14 | N/A |
$4.26
-%40
$2.56
|
| LN 104-15-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 15 | N/A |
$4.65
-%40
$2.79
|
| LN 104-16-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 16 | N/A |
$4.65
-%40
$2.79
|
| LN 104-17-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 17 | N/A |
$5.82
-%40
$3.49
|
| LN 104-18-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 18 | N/A |
$6.40
-%40
$3.84
|
| LN 104-20-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 20 | N/A |
$8.14
-%40
$4.88
|
| LN 104-22-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 22 | N/A |
$9.11
-%40
$5.47
|
| LN 104-25-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 25 | N/A |
$14.54
-%40
$8.72
|
| LN 104-30-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 30 | N/A |
$21.32
-%40
$12.79
|
| LN 104-35-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 35 | N/A |
$31.02
-%40
$18.61
|
| LN 104-40-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 40 | N/A |
$42.65
-%40
$25.59
|
| LN 104-45-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 45 | N/A |
$42.65
-%40
$25.59
|
Ürün Açıklaması
| Model | d1 | d3 | D7 | L1 | L3 | L4 |
| LN104-9 | 9 | 20,0 | 22 | 20 | 14,5 | 5,5 |
| LN104-10 | 10 | 20,0 | 22 | 20 | 14,5 | 5,5 |
| LN104-12 | 12 | 22,0 | 24 | 20 | 14,5 | 5,5 |
| LN104-14 | 14 | 24,0 | 26 | 25 | 18,0 | 7,0 |
| LN104-15 | 15 | 26,5 | 28 | 25 | 18,0 | 7,0 |
| LN104-16 | 16 | 26,5 | 28 | 25 | 18,0 | 7,0 |
| LN104-17 | 17 | 31,0 | 34 | 25 | 18,0 | 7,0 |
| LN104-18 | 18 | 31,0 | 34 | 25 | 18,0 | 7,0 |
| LN104-19 | 19 | 33,0 | 36 | 25 | 18,0 | 7,0 |
| LN104-20 | 20 | 33,0 | 36 | 25 | 18,0 | 7,0 |
| LN104-22 | 22 | 36,0 | 38 | 25 | 18,0 | 7,0 |
| LN104-25 | 25 | 39,0 | 41 | 37 | 28,0 | 9,0 |
| LN104-30 | 30 | 43,5 | 46 | 37 | 28,0 | 9,0 |
| LN104-35 | 35 | 50,5 | 51 | 37 | 28,0 | 9,0 |
| LN104-40 | 40 | 56,0 | 60 | 40 | 29,5 | 10,5 |
| LN104-45 | 45 | 63,5 | 65 | 40 | 29,5 | 10,5 |
Tasarım Özellikleri
Tasarım Özellikleri
- Körüklü, düz tek sarım yaylı tip salmastra
- Parallel spring seal with elastomeric bellow
- Balansız, dönme yönüne bağımsız
- Unbalanced, independent direction of rotation
Parça Tanımları

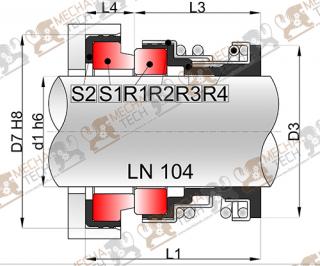

Parça ve Malzeme listesi /Part and Material List
- S1:Sabit Yüzeyi/Stationary Seat Face: V,Q2,U1,Q1
- S2:Kep/Cup:P,V,E
- R1: Döner Yüzeyi/Rotary Face:B,B5,Q2,Q1,U1
- R2:Yay Bileziği/Spring Collar:F,G
- R3: Körük/bellow:P,V,E
- R4:Yay/Spring:F,G
Çalışma Limitleri

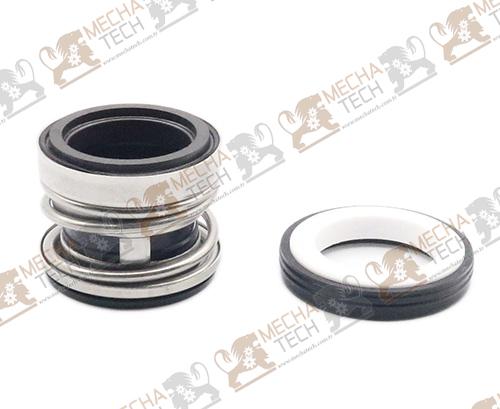

LN 104 Mekanik Salmastra/Mechanical Seal
Teknik Değerleri/Technical Parameters
- Sıcaklık:-20℃~150℃
- Basınç:≤0,6Mpa
- Çevresel Hız:≤8m/s
- Tempreture:-20℃~150℃
- Pressure:≤0,6Mpa
- Speed:≤8m/s
