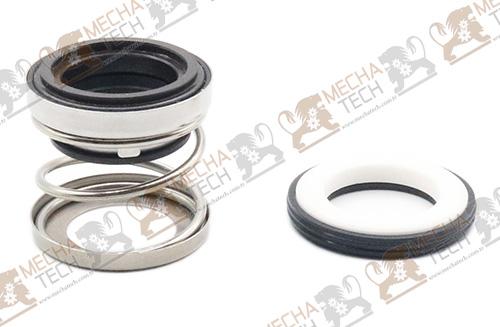

| Malzeme Adı | Türü | Çalışma Yüzeyleri | Kauçuk Tipi | Çap | Sabit Eleman | Fiyat |
|---|---|---|---|---|---|---|
| LN 108-10-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 10 | N/A |
$2.94
-%40
$1.76
|
| LN 108-12-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 12 | N/A |
$2.94
-%40
$1.76
|
| LN 108-14-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 14 | N/A |
$3.43
-%40
$2.06
|
| LN 108-17-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 17 | N/A |
$5.14
-%40
$3.08
|
| LN 108-19-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 19 | N/A |
$5.63
-%40
$3.38
|
| LN 108-24-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 24 | N/A |
$10.04
-%40
$6.02
|
| LN 108-50-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 50 | N/A |
$42.87
-%40
$25.72
|
| LN 108-40-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 40 | N/A |
$22.54
-%40
$13.52
|
| LN 108-9-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 9 | N/A |
$2.94
-%40
$1.76
|
| LN 108-11-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 11 | N/A |
$2.94
-%40
$1.76
|
| LN 108-15-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 15 | N/A |
$3.92
-%40
$2.35
|
| LN 108-16-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 16 | N/A |
$3.92
-%40
$2.35
|
| LN 108-18-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 18 | N/A |
$5.63
-%40
$3.38
|
| LN 108-20-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 20 | N/A |
$6.12
-%40
$3.67
|
| LN 108-22-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 22 | N/A |
$8.57
-%40
$5.14
|
| LN 108-25-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 25 | N/A |
$10.04
-%40
$6.02
|
| LN 108-28-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 28 | N/A |
$12.49
-%40
$7.49
|
| LN 108-30-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 30 | N/A |
$14.94
-%40
$8.96
|
| LN 108-35-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 35 | N/A |
$21.56
-%40
$12.94
|
Ürün Açıklaması

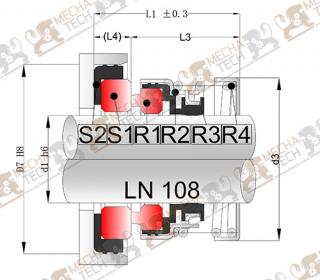

| Model | d1 | d3 | D7 | L1 | L3 | L4 |
| LN 108-8 | 8 | 15,8 | 21 | 19 | 14 | 5 |
| LN 108-9 | 9 | 20,50 | 21 | 20 | 15,00 | 5,00 |
| LN 108-10 | 10 | 20,50 | 21/22 | 20 | 15,00 | 5,00 |
| LN 108-11 | 11 | 22,50 | 23 | 20 | 15,00 | 5,00 |
| LN 108-12 | 12 | 22,50 | 23/24/26 | 20/21 | 15/16 | 5,00 |
| LN 108-14 | 14 | 25,00 | 25/26/28 | 21/25 | 16/20 | 5,00 |
| LN 108-15 | 15 | 27,00 | 27/28/30 | 25 | 20/19 | 5/6 |
| LN 108-16 | 16 | 27,00 | 27/28/30 | 25 | 20/19 | 5/6 |
| LN 108-17 | 17 | 32,00 | 33/35 | 25 | 20,00 | 5,00 |
| LN 108-17T | 17 | 27,00 | 28 | 25 | 19,50 | 5,50 |
| LN 108-18 | 18 | 32,00 | 33 | 25 | 20,00 | 5,00 |
| LN 108-19 | 19 | 33,00 | 35 | 25 | 20,00 | 5,00 |
| LN 108-20 | 20 | 33,00 | 35 | 25 | 20,00 | 5,00 |
| LN 108-22 | 22 | 37,00 | 37 | 28 | 22.5/22 | 5.5/6 |
| LN 108-22T | 22 | 35,00 | 36 | 25 | 20 | 5 |
| LN 108-24 | 24 | 39,00 | 40/41 | 32/35/37 | 24/27/29 | 8 |
| LN 108-25 | 25 | 39,00 | 40/41/41.8 | 32/35/37 | 24/27/29 | 8,00 |
| LN 108-28 | 28 | 42,00 | 45/46 | 35/37 | 27.5/29.5 | 8,00 |
| LN 108-30 | 30 | 45,00 | 45/47 | 35/37 | 27.5/29.5 | 8,00 |
| LN 108-35 | 35 | 50,50 | 50 | 37 | 29,00 | 8,00 |
| LN 108-40 | 40 | 57,50 | 58 | 40 | 31,50 | 8,50 |
| LN 108-45 | 45 | 62,50 | 63 | 40 | 31,50 | 8,50 |
| LN 108-50 | 50 | 71 | 70 | 45 | 35,5 | 9,5 |
| LN 108-55 | 55 | 75,5 | 75 | 45 | 35,5 | 9,5 |
Tasarım Özellikleri
Tasarım Özellikleri
- Diyaframlı, düz tek sarım yaylı tip salmastra
- Parallel spring seal with diaphragm
- Balansız, dönme yönüne bağımsız
- Unbalanced, independent direction of rotation
Parça Tanımları
Parça ve Malzeme listesi /Part and Material List
- S1:Sabit Yüzeyi/Stationary Seat Face: V,Q2,U1,Q1
- S2:Kep/Cup:P,V,E
- R1: Döner Yüzeyi/Rotary Face:B,B5,Q2,Q1,U1
- R2:Yay Bileziği/Spring Collar:F,G
- R3: Diyafram/diaphragm:P,V,E
- R4:Yay/Spring:F,G
Çalışma Limitleri
LN 108 Mekanik Salmastra/Mechanical Seal
Teknik Değerleri/Technical Parameters
- Sıcaklık:-20℃~100℃
- Basınç:≤0,5Mpa
- Çevresel Hız:≤5m/s
- Tempreture:-20℃~100℃
- Pressure:≤0,5Mpa
Speed:≤5m/s
