| Malzeme Adı | Türü | Çalışma Yüzeyleri | Kauçuk Tipi | Çap | Sabit Eleman | Fiyat |
|---|---|---|---|---|---|---|
| LN 155-16-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 16 | N8 |
$2.39
-%40
$1.43
|
| LN 155-10-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 10 | N8 |
$1.55
-%40
$0.93
|
| LN 155-11-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 11 | N8 |
$1.55
-%40
$0.93
|
| LN 155-12-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 12 | N8 |
$11.79
-%40
$7.07
|
| LN 155-12-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 12 | N8 |
$1.69
-%40
$1.01
|
| LN 155-13-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 13 | N8 |
$1.83
-%40
$1.10
|
| LN 155-14-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 14 | N8 |
$13.63
-%40
$8.18
|
| LN 155-14-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 14 | N8 |
$24.61
-%40
$14.77
|
| LN 155-14-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 14 | N8 |
$2.04
-%40
$1.22
|
| LN 155-15-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 15 | N8 |
$14.55
-%40
$8.73
|
| LN 155-15-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 15 | N8 |
$28.52
-%40
$17.11
|
| LN 155-15-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 15 | N8 |
$2.25
-%40
$1.35
|
| LN 155-16-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 16 | N8 |
$16.23
-%40
$9.74
|
| LN 155-16-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 16 | N8 |
$30.76
-%40
$18.46
|
| LN 155-17-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 17 | N8 |
$2.68
-%40
$1.61
|
| LN 155-18-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 18 | N8 |
$19.29
-%40
$11.57
|
| LN 155-18-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 18 | N8 |
$34.48
-%40
$20.69
|
| LN 155-18-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 18 | N8 |
$3.52
-%40
$2.11
|
| LN 155-19-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 19 | N8 |
$19.29
-%40
$11.57
|
| LN 155-19-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 19 | N8 |
$3.52
-%40
$2.11
|
| LN 155-20-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 20 | N8 |
$20.82
-%40
$12.49
|
| LN 155-20-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 20 | N8 |
$38.77
-%40
$23.26
|
| LN 155-20-U1Q2PFF | MEKANİK SALMASTRA | U1/Q22 | Nbr | 20 | N8 | |
| LN 155-20-U1U1VFF | MEKANİK SALMASTRA | U1/U1 | Viton | 20 | N8 | |
| LN 155-20-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 20 | N8 |
$4.79
-%40
$2.87
|
| LN 155-22-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 22 | N8 |
$26.18
-%40
$15.71
|
| LN 155-22-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 22 | N8 |
$45.67
-%40
$27.40
|
| LN 155-22-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 22 | N8 |
$5.71
-%40
$3.43
|
| LN 155-24-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 24 | N8 |
$29.25
-%40
$17.55
|
| LN 155-24-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 24 | N8 |
$47.72
-%40
$28.63
|
| LN 155-24-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 24 | N8 |
$6.55
-%40
$3.93
|
| LN 155-25-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 25 | N8 |
$32.15
-%40
$19.29
|
| LN 155-25-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 25 | N8 |
$51.82
-%40
$31.09
|
| LN 155-25-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 25 | N8 |
$6.83
-%40
$4.10
|
| LN 155-28-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 28 | N8 |
$60.02
-%40
$36.01
|
| LN 155-28-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 28 | N8 |
$8.73
-%40
$5.24
|
| LN 155-30-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 30 | N8 |
$60.02
-%40
$36.01
|
| LN 155-30-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 30 | N8 |
$9.40
-%40
$5.64
|
| LN 155-32-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 32 | N8 |
$10.83
-%40
$6.50
|
| LN 155-33-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 33 | N8 |
$10.83
-%40
$6.50
|
| LN 155-35-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 35 | N8 |
$80.53
-%40
$48.32
|
| LN 155-35-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 35 | N8 |
$13.59
-%40
$8.15
|
| LN 155-38-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 38 | N8 |
$20.52
-%40
$12.31
|
| LN 155-40-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 40 | N8 |
$20.52
-%40
$12.31
|
| LN 155B-18-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 18 | N8 |
$12.60
-%40
$7.56
|
| LN 155B-20-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 20 | N8 |
$14.35
-%40
$8.61
|
| LN 155B-22-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 22 | N8 |
$17.64
-%40
$10.58
|
| LN 155-17-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 17 | N8 |
$32.25
-%40
$19.35
|
| LN 155-19-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 19 | N8 |
$36.72
-%40
$22.03
|
| LN 155-10-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 10 | N8 |
$11.79
-%40
$7.07
|
| LN 155-13-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 13 | N8 |
$13.63
-%40
$8.18
|
| LN 155-17-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 17 | N8 |
$17.76
-%40
$10.66
|
| LN 155-28-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 28 | N8 |
$38.28
-%40
$22.97
|
| LN 155-30-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 30 | N8 |
$40.12
-%40
$24.07
|
| LN 155-32-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 32 | N8 |
$42.87
-%40
$25.72
|
| LN 155-33-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 33 | N8 |
$44.40
-%40
$26.64
|
| LN 155-35-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 35 | N8 |
$53.44
-%40
$32.06
|
| LN 155-38-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 38 | N8 |
$64.16
-%40
$38.50
|
| LN 155-40-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 40 | N8 |
$64.16
-%40
$38.50
|
| LN 155-10-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 10 | N8 | |
| LN 155-12-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 12 | N8 |
$19.01
-%40
$11.41
|
| LN 155-13-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 13 | N8 | |
| LN 155-32-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 32 | N8 |
$65.43
-%40
$39.26
|
| LN 155-33-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 33 | N8 |
$80.53
-%40
$48.32
|
| LN 155-38-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 38 | N8 |
$95.63
-%40
$57.38
|
| LN 155-40-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 40 | N8 |
$95.63
-%40
$57.38
|
| LN 155-10-U1U1VFF | MEKANİK SALMASTRA | U1/U1 | Viton | 10 | N8 | |
| LN 155-12-U1U1VFF | MEKANİK SALMASTRA | U1/U1 | Viton | 12 | N8 | |
| LN 155-13-U1U1VFF | MEKANİK SALMASTRA | U1/U1 | Viton | 13 | N8 | |
| LN 155-14-U1U1VFF | MEKANİK SALMASTRA | U1/U1 | Viton | 14 | N8 | |
| LN 155-15-U1U1VFF | MEKANİK SALMASTRA | U1/U1 | Viton | 15 | N8 |
$115.35
-%40
$69.21
|
| LN 155-16-U1U1VFF | MEKANİK SALMASTRA | U1/U1 | Viton | 16 | N8 | |
| LN 155-17-U1U1VFF | MEKANİK SALMASTRA | U1/U1 | Viton | 17 | N8 | |
| LN 155-18-U1U1VFF | MEKANİK SALMASTRA | U1/U1 | Viton | 18 | N8 |
$142.10
-%40
$85.26
|
| LN 155-19-U1U1VFF | MEKANİK SALMASTRA | U1/U1 | Viton | 19 | N8 | |
| LN 155-22-U1U1VFF | MEKANİK SALMASTRA | U1/U | Viton | 22 | N8 |
$218.09
-%40
$130.85
|
| LN 155-24-U1U1VFF | MEKANİK SALMASTRA | U1/U1 | Viton | 24 | N8 | |
| LN 155-25-U1U1VFF | MEKANİK SALMASTRA | U1/U1 | Viton | 25 | N8 |
$233.21
-%40
$139.93
|
| LN 155-28-U1U1VFF | MEKANİK SALMASTRA | U1/U1 | Viton | 28 | N8 | |
| LN 155-30-U1U1VFF | MEKANİK SALMASTRA | U1/U1 | Viton | 30 | N8 | |
| LN 155-32-U1U1VFF | MEKANİK SALMASTRA | U1/U1 | Viton | 32 | N8 | |
| LN 155-33-U1U1VFF | MEKANİK SALMASTRA | U1U1 | Viton | 33 | N8 | |
| LN 155-35-U1U1VFF | MEKANİK SALMASTRA | U1/U1 | Viton | 35 | N8 | |
| LN 155-38-U1U1VFF | MEKANİK SALMASTRA | U1/U1 | Viton | 38 | N8 | |
| LN 155-40-U1U1VFF | MEKANİK SALMASTRA | U1/U1 | Viton | 40 | N8 | |
| LN 155B-10-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 10 | N8 |
$6.20
-%40
$3.72
|
| LN 155B-12-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 12 | N8 |
$6.79
-%40
$4.07
|
| LN 155B-14-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 14 | N8 |
$8.34
-%40
$5.00
|
| LN 155B-16-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 16 | N8 |
$11.63
-%40
$6.98
|
| LN 155B-25-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 25 | N8 |
$24.23
-%40
$14.54
|
| LN 155B-28-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 28 | N8 |
$26.75
-%40
$16.05
|
| LN 155B-30-VB5PFF | MEKANİK SALMASTRA | V/B5 | Nbr | 30 | N8 |
$28.11
-%40
$16.87
|
| LN 155-13-BQ2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 13 | N8 |
$13.63
-%40
$8.18
|
Ürün Açıklaması

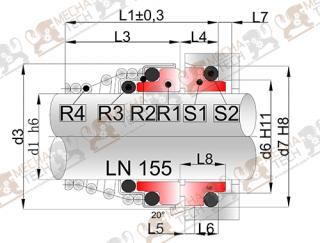

| Model | d1 | d3 | D6 | D7 | L1 | L3 | L8 |
| LN 155-10 | 10 | 20 | 14 | 18,1 | 20,5 | 15 | 5,5 |
| LN 155-11 | 11 | 22 | 16,5 | 20,6 | 23,5 | 18 | 5,5 |
| LN 155-12 | 12 | 22 | 16,5 | 20,6 | 23,5 | 18 | 5,5 |
| LN 155-13 | 13 | 25 | 19 | 23,1 | 28 | 22 | 6 |
| LN 155-14 | 14 | 25 | 19 | 23,1 | 28 | 22 | 6 |
| LN 155-15 | 15 | 29 | 21 | 26,9 | 29 | 22 | 7 |
| LN 155-16 | 16 | 29 | 21 | 26,9 | 30 | 23 | 7 |
| LN 155-17 | 17 | 29 | 21 | 26,9 | 30 | 23 | 7 |
| LN 155-18 | 18 | 33 | 25 | 30,9 | 32 | 24 | 8 |
| LN 155-19 | 19 | 33 | 25 | 30,9 | 33 | 25 | 8 |
| LN 155-20 | 20 | 33 | 25 | 30,9 | 33 | 25 | 8 |
| LN 155-21 | 21 | 38 | 30 | 35,4 | 33 | 25 | 8 |
| LN 155-22 | 22 | 38 | 30 | 35,4 | 33 | 25 | 8 |
| LN 155-23 | 23 | 38 | 30 | 35,4 | 35 | 27 | 8 |
| LN 155-24 | 24 | 38 | 30 | 35,4 | 35 | 27 | 8 |
| LN 155-25 | 25 | 40 | 33 | 38,2 | 35 | 27 | 8,5 |
| LN 155-28 | 28 | 46 | 38 | 43,3 | 38 | 29 | 9 |
| LN 155-29 | 29 | 46 | 38 | 43,3 | 39 | 30 | 9 |
| LN 155-30 | 30 | 46 | 38 | 43,3 | 39 | 30 | 9 |
| LN 155-32 | 32 | 46 | 38 | 43,3 | 39 | 30 | 9 |
| LN 155-33 | 33 | 48 | 45 | 53,5 | 50,5 | 39 | 11,5 |
| LN 155-35 | 35 | 50 | 45 | 53,5 | 50,5 | 39 | 11,5 |
| LN 155-38 | 38 | 58 | 52 | 60,5 | 50,5 | 39 | 11,5 |
| LN 155-40 | 40 | 58 | 52 | 60,5 | 50,5 | 39 | 11,5 |
| LN 155-43 | 43 | 59 | 52 | 60,5 | 50,5 | 39 | 11,5 |
| LN 155-45 | 45 | 61 | 52 | 65,5 | 52,5 | 41 | 11,5 |
| LN 155-48 | 48 | 66 | 57 | 65,5 | 52,5 | 41 | 11,5 |
| LN 155-50 | 50 | 67 | 64 | 72,5 | 56,5 | 45 | 11,5 |
Tasarım Özellikleri
Tasarım Özellikleri

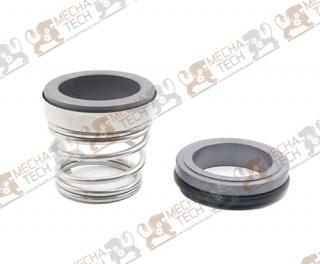

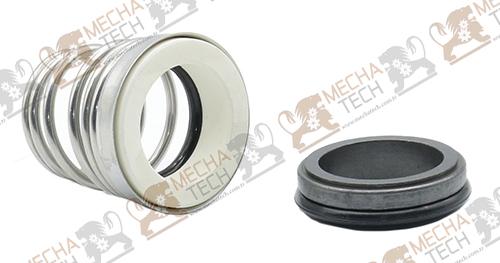

- Oringli, konik yaylı tip salmastra
- Tapper spring seal with oring
- Balansız, dönme yönüne bağımlı
- Unbalanced, dependent direction of rotation
- Burgmann® BT-FN, Roten®3 muadilidir.
- Replacement of Burgmann® BT-FN, Roten®3.
Parça Tanımları
Parça ve Malzeme listesi /Part and Material List
- S1:Sabit Yüzeyi/Stationary Seat Face: B,B5,Q2,Q1,U1
- S2:Oring/oring:P,V,E
- R1: Döner Yüzeyi/Rotary Face: V,Q2,U1,Q1
- R2:Yay Bileziği/Spring Collar:F,G
- R3: Oring/Oring:P,V,E,M1
- R4:Yay/Spring:F,G
Çalışma Limitleri
LN 155 Mekanik Salmastra/Mechanical Seal
Teknik Değerleri/Technical Parameters
- Sıcaklık:-35℃~160℃
- Basınç:≤1,0Mpa
- Çevresel Hız:≤15m/s
- Tempreture:-35℃~160℃
- Pressure:≤1,0Mpa
- Speed:≤15m/s
