| Malzeme Adı | Türü | Çalışma Yüzeyleri | Kauçuk Tipi | Çap | Sabit Eleman | Fiyat |
|---|---|---|---|---|---|---|
| LN 208-14-BV/BVPFF | MEKANİK SALMASTRA | BV/B/V | Nbr | 14 | N/A |
$3.88
-%40
$2.33
|
| LN 208-15-BV/BVPFF | MEKANİK SALMASTRA | BV/BV | Nbr | 15 | N/A |
$4.85
-%40
$2.91
|
| LN 208-16-BV/BVPFF | MEKANİK SALMASTRA | BV/BV | Nbr | 16 | N/A |
$4.85
-%40
$2.91
|
| LN 208-18-BV/BVPFF | MEKANİK SALMASTRA | BV/BV | Nbr | 18 | N/A |
$7.75
-%40
$4.65
|
| LN 208-20-BV/BVPFF | MEKANİK SALMASTRA | BV/BV | Nbr | 20 | N/A |
$8.72
-%40
$5.23
|
| LN 208-25-BV/BVPFF | MEKANİK SALMASTRA | BV/BV | Nbr | 25 | N/A |
$14.15
-%40
$8.49
|
| LN 208-30-BV/BVPFF | MEKANİK SALMASTRA | BV/BV | Nbr | 30 | N/A |
$21.32
-%40
$12.79
|
| LN 208-35-BV/BVPFF | MEKANİK SALMASTRA | BV/BV | Nbr | 35 | N/A |
$28.11
-%40
$16.87
|
| LN 208-45-BV/BVPFF | MEKANİK SALMASTRA | BV/BV | Nbr | 45 | N/A |
$36.64
-%40
$21.98
|
| LN 208-50-BV/BVPFF | MEKANİK SALMASTRA | BV/BV | Nbr | 50 | N/A |
$50.21
-%40
$30.13
|
| LN 208-40-BV/BVPFF | MEKANİK SALMASTRA | BV/BV | Nbr | 40 | N/A |
$30.63
-%40
$18.38
|
| LN 208-10-BV/BVPFF | MEKANİK SALMASTRA | BV/B/V | Nbr | 10 | N/A | |
| LN 208-12-BV/BVPFF | MEKANİK SALMASTRA | BV/B/V | Nbr | 12 | N/A | |
| LN 208-14-Q2Q2/Q2Q2PFF | MEKANİK SALMASTRA | Q2Q2/Q2Q2 | Nbr | 14 | N/A |
$14.54
-%40
$8.72
|
| LN 208-16-Q2Q2/Q2Q2PFF | MEKANİK SALMASTRA | Q2Q2/Q2Q2 | Nbr | 16 | N/A |
$16.48
-%40
$9.89
|
| LN 208-20-Q2Q2/Q2Q2PFF | MEKANİK SALMASTRA | Q2Q2/Q2Q2 | Nbr | 20 | N/A |
$30.05
-%40
$18.03
|
| LN 208-30-Q2Q2/Q2Q2PFF | MEKANİK SALMASTRA | Q2Q2/Q2Q2 | Nbr | 30 | N/A |
$55.83
-%40
$33.50
|
| LN 208-35-Q2Q2/Q2Q2PFF | MEKANİK SALMASTRA | Q2Q2/Q2Q2 | Nbr | 35 | N/A |
$71.34
-%40
$42.80
|
| LN 208-25-Q2Q2/Q2Q2PFF | MEKANİK SALMASTRA | Q2Q2/Q2Q2 | Nbr | 25 | N/A |
$41.10
-%40
$24.66
|
| LN 208-18-Q2Q2/Q2Q2PFF | MEKANİK SALMASTRA | Q2Q2/Q2Q2 | Nbr | 18 | N/A |
$22.29
-%40
$13.37
|
| LN 208-40-Q2Q2/Q2Q2PFF | MEKANİK SALMASTRA | Q2Q2/Q2Q2 | Nbr | 40 | N/A |
$89.18
-%40
$53.51
|
| LN 208-45-Q2Q2/Q2Q2PFF | MEKANİK SALMASTRA | Q2Q2/Q2Q2 | Nbr | 45 | N/A |
$112.44
-%40
$67.46
|
| LN 208-16-Q2Q2/Q2Q2VFF | MEKANİK SALMASTRA | Q2Q2/Q2Q2 | Viton | 16 | N/A |
Ürün Açıklaması

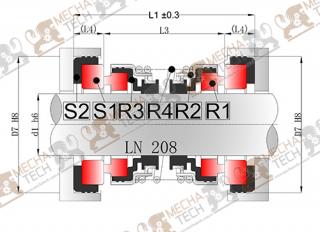

| Model | d1 | D7 | L1 | L3 | L4 |
| LN 208-10 | 10 | 22 | 30 | 20 | 5 |
| LN 208-12 | 12 | 23/24/26 | 30/32/35/38/40 | 22/25/28/30 | 4/5 |
| LN 208-14 | 14 | 26/28/30 | 35/36/38/40/41 | 25/26/28/30/31 | 5 |
| LN 208-15 | 15 | 27/28 | 38 | 28 | 5 |
| LN 208-16 | 16 | 27/28/30 | 38/40/41/42/44 | 28/30/31/32/34 | 5 |
| LN 208-17 | 17 | 33/35 | 38/40/42/45 | 28/30/32/35 | 5 |
| LN 208-18 | 18 | 33/35 | 35/42 | 28/32 | 5 |
| LN 208-20 | 20 | 35/36 | 38/40/42/45 | 28/30/32/35 | 5 |
| LN 208-22 | 22 | 36/37 | 40/42 | 30 | 5/6 |
| LN 208-24 | 24 | 40/41 | 48/51/54 | 35/36/38 | 6/8 |
| LN 208-25 | 25 | 40/41 | 48/51/54 | 35/36/38 | 6/8 |
| LN 208-28 | 28 | 45/46 | 51 | 36 | 7.5 |
| LN 208-30 | 30 | 45/46 | 51 | 36 | 7.5 |
| LN 208-35 | 35 | 50 | 51 | 36 | 8 |
| LN 208-40 | 40 | 58 | 58/60/61 | 40/42/43 | 9 |
| LN 208-45 | 45 | 63 | 61 | 44 | 8.5 |
| LN 208-50 | 50 | 70 | 69 | 50 | 9.5 |
| LN 208-55 | 55 | 75 | 70/78 | 51/59 | 9.5 |
Tasarım Özellikleri
Tasarım Özellikleri
- Diyaframlı, düz tek sarım yaylı tip salmastra
- Parallel spring seal with diaphragm
- Balansız, dönme yönüne bağımsız
- Unbalanced, independent direction of rotation
Parça Tanımları
Parça ve Malzeme listesi /Part and Material List
- S1:Sabit Yüzeyi/Stationary Seat Face: V,Q2,U1,Q1
- S2:Kep/Cup:P,V,E
- R1: Döner Yüzeyi/Rotary Face:B,B5,Q2,Q1,U1
- R2:Yay Bileziği/Spring Collar:F,G
- R3: Diyafram/diaphragm:P,V,E
R4:Yay/Spring:F,G
Çalışma Limitleri
LN 208 Mekanik Salmastra/Mechanical Seal
Teknik Değerleri/Technical Parameters
- Sıcaklık:-20℃~100℃
- Basınç:≤0,8Mpa
- Çevresel Hız:≤5m/s
- Tempreture:-40℃~150℃
- Pressure:≤0,8Mpa
- Speed:≤5m/s
