| Malzeme Adı | Türü | Çalışma Yüzeyleri | Kauçuk Tipi | Çap | Sabit Eleman | Fiyat |
|---|---|---|---|---|---|---|
| LN 502-16/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 16 | NO |
$46.30
-%40
$27.78
|
| LN 502-28/N9-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 28 | N9 | |
| LN 502-30/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 30 | NO |
$90.48
-%40
$54.29
|
| LN 502-32/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 32 | NO |
$98.66
-%40
$59.20
|
| LN 502-35/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 35 | NO |
$102.48
-%40
$61.49
|
| LN 502-38/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 38 | NO |
$121.30
-%40
$72.78
|
| LN 502-40/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 40 | NO |
$127.19
-%40
$76.31
|
| LN 502-45/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 45 | NO |
$151.63
-%40
$90.98
|
| LN 502-50/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 50 | NO |
$185.24
-%40
$111.14
|
| LN 502-53/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 53 | NO |
$203.05
-%40
$121.83
|
| LN 502-55/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 55 | NO |
$218.19
-%40
$130.91
|
| LN 502-25/BO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 25 | NO | |
| LN 502-10/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 10 | NO | |
| LN 502-12/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 12 | NO | |
| LN 502-14/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 14 | NO | |
| LN 502-15/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 15 | NO | |
| LN 502-16/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 16 | NO |
$41.99
-%40
$25.19
|
| LN 502-17/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 17 | NO | |
| LN 502-18/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 18 | NO |
$44.69
-%40
$26.81
|
| LN 502-19/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 19 | NO | |
| LN 502-20/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 20 | NO |
$46.71
-%40
$28.03
|
| LN 502-22/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 22 | NO |
$53.32
-%40
$31.99
|
| LN 502-24/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 24 | NO |
$61.00
-%40
$36.60
|
| LN 502-25/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 25 | NO |
$62.61
-%40
$37.57
|
| LN 502-28/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 28 | NO |
$70.12
-%40
$42.07
|
| LN 502-30/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 30 | NO |
$77.92
-%40
$46.75
|
| LN 502-32/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 32 | NO |
$84.80
-%40
$50.88
|
| LN 502-33/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 33 | NO |
$86.17
-%40
$51.70
|
| LN 502-35/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 35 | NO |
$88.37
-%40
$53.02
|
| LN 502-38/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 38 | NO |
$103.72
-%40
$62.23
|
| LN 502-40/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 40 | NO |
$108.09
-%40
$64.85
|
| LN 502-42/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 42 | NO |
$122.76
-%40
$73.66
|
| LN 502-43/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 43 | NO |
$123.09
-%40
$73.85
|
| LN 502-45/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 45 | NO |
$130.84
-%40
$78.50
|
| LN 502-48/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 48 | NO |
$143.20
-%40
$85.92
|
| LN 502-50/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 50 | NO |
$160.56
-%40
$96.34
|
| LN 502-53/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 53 | NO |
$175.97
-%40
$105.58
|
| LN 502-55/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 55 | NO |
$189.34
-%40
$113.60
|
| LN 502-58/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 58 | NO | |
| LN 502-60/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 60 | NO |
$224.90
-%40
$134.94
|
| LN 502-63/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 63 | NO | |
| LN 502-65/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 65 | NO |
$261.77
-%40
$157.06
|
| LN 502-68/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 68 | NO |
$285.91
-%40
$171.55
|
| LN 502-70/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 70 | NO |
$283.71
-%40
$170.23
|
| LN 502-75/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 75 | NO |
$323.25
-%40
$193.95
|
| LN 502-80/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 80 | NO |
$370.37
-%40
$222.22
|
| LN 502-85/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 85 | NO | |
| LN 502-90/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 90 | NO | |
| LN 502-95/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 95 | NO | |
| LN 502-100/NO-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 100 | NO | |
| LN 502-10/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 10 | NO | |
| LN 502-12/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 12 | NO | |
| LN 502-14/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 14 | NO | |
| LN 502-15/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 15 | NO | |
| LN 502-17/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 17 | NO | |
| LN 502-18/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 18 | NO |
$50.70
-%40
$30.42
|
| LN 502-19/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 19 | NO | |
| LN 502-20/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 20 | NO |
$53.84
-%40
$32.30
|
| LN 502-22/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 22 | NO |
$60.75
-%40
$36.45
|
| LN 502-24/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 24 | NO |
$70.38
-%40
$42.23
|
| LN 502-25/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 25 | NO |
$72.36
-%40
$43.42
|
| LN 502-28/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 28 | NO |
$81.21
-%40
$48.73
|
| LN 502-33/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 33 | NO |
$99.87
-%40
$59.92
|
| LN 502-42/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 42 | NO |
$141.95
-%40
$85.17
|
| LN 502-43/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 43 | NO |
$142.44
-%40
$85.46
|
| LN 502-48/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 48 | NO |
$165.53
-%40
$99.32
|
| LN 502-58/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 58 | NO | |
| LN 502-60/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 60 | NO |
$263.57
-%40
$158.14
|
| LN 502-63/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 63 | NO | |
| LN 502-65/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 65 | NO |
$305.52
-%40
$183.31
|
| LN 502-68/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 68 | NO |
$330.59
-%40
$198.35
|
| LN 502-70/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 70 | NO |
$337.02
-%40
$202.21
|
| LN 502-75/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 75 | NO |
$390.13
-%40
$234.08
|
| LN 502-80/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 80 | NO |
$439.09
-%40
$263.45
|
| LN 502-85/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 85 | NO | |
| LN 502-90/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 90 | NO | |
| LN 502-95/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 95 | NO | |
| LN 502-100/NO-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 100 | NO | |
| LN 502-18/N6-Q2Q2VFF | MEKANİK SALMASTRA | Q2/Q2 | Viton | 18 | N6 | |
| L 502-70-Q2PFF | DÖNER ELEMAN | Q2Q2VFF | M |
Ürün Açıklaması

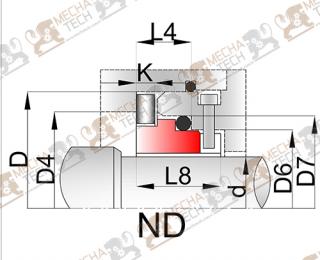

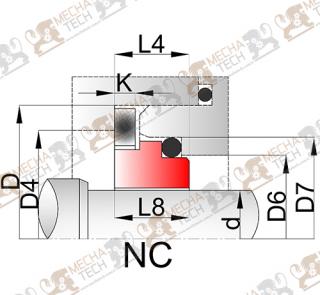

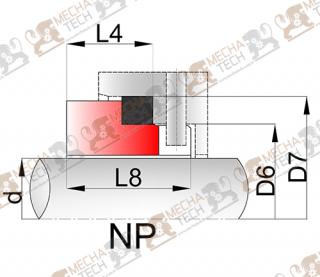

| d | D3 | D6 | D7 | L3 | L4 | L8 | |
| LN 502-14 | 14 | 24 | 21 | 25 | 23 | 12 | 12,8 |
| LN 502-16 | 16 | 26 | 23 | 27 | 23 | 12 | 12,8 |
| LN 502-18 | 18 | 32 | 27 | 33 | 24 | 13,5 | 14,5 |
| LN 502-20 | 20 | 34 | 29 | 35 | 24 | 13,5 | 14,5 |
| LN 502-22 | 22 | 36 | 31 | 37 | 24 | 13,5 | 14,5 |
| LN 502-24 | 24 | 38 | 33 | 39 | 26,7 | 13,3 | 14,3 |
| LN 502-25 | 25 | 39 | 34 | 40 | 27 | 13 | 14 |
| LN 502-28 | 28 | 42 | 37 | 43 | 30 | 12,5 | 13,5 |
| LN 502-30 | 30 | 44 | 39 | 45 | 30,5 | 12 | 13 |
| LN 502-32 | 32 | 46 | 42 | 48 | 30,5 | 12 | 13 |
| LN 502-33 | 33 | 47 | 42 | 48 | 30,5 | 12 | 13 |
| LN 502-35 | 35 | 49 | 44 | 50 | 30,5 | 12 | 13 |
| LN 502-38 | 38 | 54 | 49 | 56 | 32 | 13 | 14 |
| LN 502-40 | 40 | 56 | 51 | 58 | 32 | 13 | 14 |
| LN 502-43 | 43 | 59 | 54 | 61 | 32 | 13 | 14 |
| LN 502-45 | 45 | 61 | 56 | 63 | 32 | 13 | 14 |
| LN 502-48 | 48 | 64 | 59 | 66 | 32 | 13 | 14 |
| LN 502-50 | 50 | 66 | 62 | 70 | 34 | 13,5 | 14,5 |
| LN 502-53 | 53 | 69 | 65 | 73 | 34 | 13,5 | 14,5 |
| LN 502-55 | 55 | 71 | 67 | 75 | 34 | 13,5 | 14,5 |
| LN 502-58 | 58 | 78 | 70 | 78 | 39 | 13,5 | 14,2 |
| LN 502-60 | 60 | 80 | 72 | 80 | 39 | 13,5 | 14,2 |
| LN 502-63 | 63 | 83 | 75 | 83 | 39 | 13,5 | 14,2 |
| LN 502-65 | 65 | 85 | 77 | 85 | 39 | 13,5 | 14,2 |
| LN 502-68 | 68 | 88 | 81 | 90 | 39 | 13,5 | 14,2 |
| LN 502-70 | 70 | 89 | 83 | 92 | 45,5 | 14,5 | 15,2 |
| LN 502-75 | 75 | 96 | 88 | 97 | 45,5 | 14,5 | 15,2 |
| LN 502-80 | 80 | 104 | 95 | 105 | 45 | 15 | 15,7 |
| LN 502-85 | 85 | 108 | 100 | 110 | 45 | 15 | 15,7 |
| LN 502-90 | 90 | 114 | 105 | 115 | 50 | 15 | 15,7 |
| LN 502-95 | 95 | 118 | 110 | 120 | 50 | 15 | 15,7 |
| LN 502-100 | 100 | 124 | 115 | 125 | 50 | 15 | 15,7 |
Tasarım Özellikleri
Tasarım Özellikleri /Design Features
- Körüklü, düz yaylı tip salmastra
- Elastomaric bellow, parallel spring seal
- Balansız, dönme yönüne bağımsız
- Unbalanced, independent direction of rotation
- Crane® 502 muadilidir.
- Replacement of Crane® 502

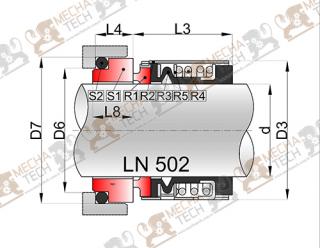

Parça Tanımları
Parça ve Malzeme listesi /Part and Material List
- S1:Sabit Yüzeyi/Stationary Seat Face: V,Q2,U1,Q1
- S2:Oring/OringP,V,E
- R1: Döner Yüzeyi/Rotary Face:B,Q2,Q1,U1
- R2:Kovan/Retainer:F,G
- R3: Elastomerik Körük/Elastomeric Bellow:P,V,E
- R4:Yay/Spring:F,G
- R5:Pul/washer:F,G
Çalışma Limitleri

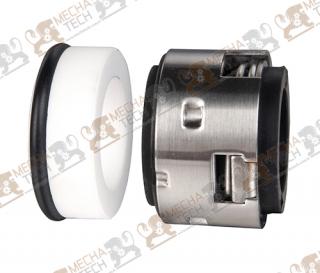

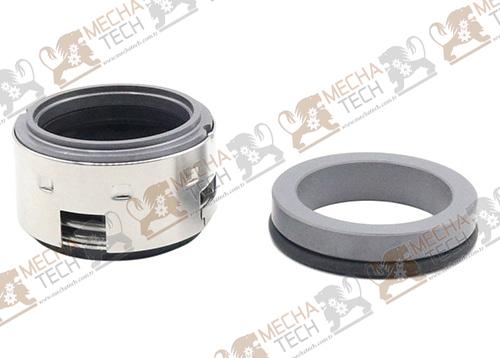

LN 502 Mekanik Salmastra/Mechanical Seal
Teknik Değerleri/Technical Parameters
- Sıcaklık:-30℃~180℃
- Basınç:≤2,5Mpa
- Çevresel Hız:≤12m/s
- Tempreture:-30℃~180℃
- Pressure:≤2,5Mpa
- Speed:≤12m/s
