| Malzeme Adı | Türü | Çalışma Yüzeyleri | Kauçuk Tipi | Çap | Sabit Eleman | Fiyat |
|---|---|---|---|---|---|---|
| LN F-1"-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 1 | N/A |
$8.92
-%40
$5.35
|
| LN F-1/2"-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 1/2 | N/A |
$3.68
-%40
$2.21
|
| LN F-1/2-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 1/2 | N/A |
$3.68
-%40
$2.21
|
| LN F-1/2B-B5VPFG | MEKANİK SALMASTRA | B5/V | Nbr | 1/2 | N/A |
$3.68
-%40
$2.21
|
| LN F-1-1/8"-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 1-1/8 | N/A |
$13.57
-%40
$8.14
|
| LN F-3/4"-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 3/4 | N/A |
$5.62
-%40
$3.37
|
| LN F-3/4K"-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 3/4 | N/A |
$8.72
-%40
$5.23
|
| LN F-5/8"-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 5/8 | N/A |
$4.65
-%40
$2.79
|
| LN F-1/2"B-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 1/2 | N/A |
$3.68
-%40
$2.21
|
| LN F-3/4"-Q2Q2PFF | MEKANİK SALMASTRA | Q2/Q2 | Nbr | 3/4 | N/A | |
| LN F-10-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 10 | N/A |
$3.68
-%40
$2.21
|
| LN F-12S-B5VPFG | MEKANİK SALMASTRA | B5/V | Nbr | 12 | N/A |
$3.68
-%40
$2.21
|
| LN F-16L-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 16 | N/A |
$5.04
-%40
$3.02
|
| LN F-5/8H"-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 5/8 | N/A |
$4.65
-%40
$2.79
|
| LN F-20-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 20 | N/A |
$7.56
-%40
$4.54
|
| LN F-25-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 25 | N/A |
$8.92
-%40
$5.35
|
| LN F-25L-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 25 | N/A |
$10.66
-%40
$6.40
|
Ürün Açıklaması

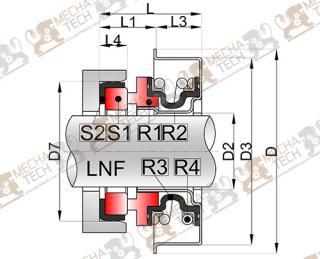

| d | D2 | D3 | D7 | D | L | L1 | L3 | L4 | ||
| LN F-10 | 10 | 10 | 11 | 24 | 23 | 29 | 17 | 10 | 7 | 4 |
| LN F-12S | 12 | 12 | 14,2 | 28,55 | 25 | 32 | 18,2 | 10,2 | 8 | 5 |
| LN F-12M | 12 | 12 | 14,2 | 30 | 24/23 | 35 | 18 | 10 | 8 | 5 |
| LN F-12L | 12 | 12 | 14,2 | 33,4 | 25 | 38 | 18 | 11,3 | 6,7 | 5 |
| LN F-16 | 16 | 16 | 18,2 | 36,45 | 31 | 41,5 | 19,8 | 11,8 | 8 | 5 |
| LN F-16L | 16 | 16 | 18,2 | 38,1 | 31 | 43,5 | 19,8 | 11,8 | 8 | 5 |
| LN F-18LF | 16 | 16 | 18,2 | 38,1 | 31 | 43,5 | 19,8 | 11,8 | 8 | 5 |
| LN F-20S | 20 | 20 | 21,2 | 38 | 35 | 43,8 | 20,5 | 11 | 9,5 | 5,5 |
| LN F-20M | 20 | 20 | 21,2 | 40 | 35 | 43,8 | 20,5 | 11 | 9,5 | 5 |
| LN F-20L | 20 | 20 | 21,2 | 46 | 35 | 43,8 | 20,5 | 11 | 9,5 | 5 |
| LN F-25 | 25 | 25 | 26,4 | 46 | 44 | 51 | 25 | 15 | 10 | 7 |
| LN F-25S | 25 | 25 | 26,4 | 47 | 44 | 51 | 25 | 15 | 10 | 8.5/7 |
| LN F-25M | 25 | 25 | 26,4 | 52 | 44 | 51 | 25 | 13 | 12 | 8.5/7 |
| LN F-25L | 25 | 25 | 26,4 | 52 | 48 | 57 | 25 | 13 | 12 | 8.5/7 |
| LN F-30 | 30 | 30 | 31 | 52 | 48 | 57 | 27 | 16 | 11 | 8,5 |
| LN F-1/2" | 1/2" | 12,7 | 14 | 28,5 | 25 | 31,7 | 18,2 | 10,2 | 8 | 5 |
| LN F-1/2B" | 1/2B" | 12,7 | 14 | 30 | 25 | 35 | 18,2 | 10,2 | 8 | 5 |
| LN F-5/8" | 5/8" | 15,875 | 18 | 36,5 | 31 | 41,3 | 19,8 | 11,8 | 8 | 5 |
| LN F-5/8H" | 5/8" | 15,875 | 18 | 36,5 | 31,75 | 41,5 | 26 | 16 | 10 | 10 |
| LN F-3/4" | 3/4" | 19,05 | 21 | 40 | 35 | 43,7 | 20,5 | 11 | 9,5 | 5 |
| LN F-3/4K" | 3/4" | 19,05 | 21 | 40 | 35 | 43,7 | 21,3 | 11 | 9,5 | 10,3 |
| LN F-1" | 1" | 25,4 | 26,4 | 47 | 41,3 | 51 | 31 | 19 | 12 | 11 |
| LN F-1-1/8" | 1-1/8" | 28,58 | 31 | 52 | 48 | 57 | 27 | 16 | 11 | 8,5 |
Tasarım Özellikleri
Tasarım Özellikleri
- Mini su pompalarında kullanılır
- Used in mini-water pumps
- Otomobil motor soğutma su pompasında kullanılır.
- Used in automobile engine cooling water pump
Parça Tanımları
Parça ve Malzeme listesi /Part and Material List
- S1:Sabit Yüzeyi/Stationary Seat Face: V,Q2,U1,Q1
- S2:Kep/Cup:P,V,E
- R1: Döner Yüzeyi/Rotary Face:B,B5,Q2,Q1,U1
- R2:Yay Bileziği/Spring Collar:F,G
- R3: Elastomerik Körük/Elastomeric Bellow:P,V,E
- R4:Yay/Spring:F,G
Çalışma Limitleri

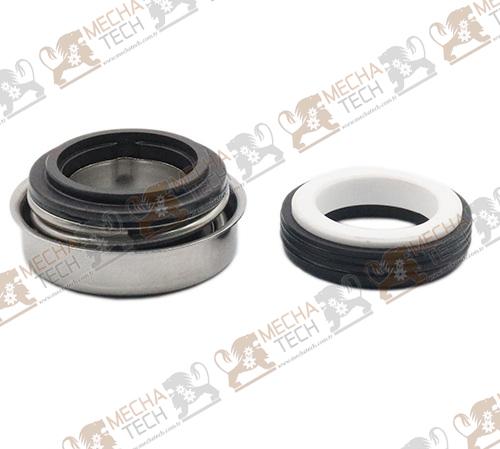

LN F Mekanik Salmastra/Mechanical Seal
Teknik Değerleri/Technical Parameters
- Sıcaklık:-20℃~120℃
- Basınç:≤0,5Mpa
- Çevresel Hız:≤10m/s
- Tempreture:-20℃~120℃
- Pressure:≤0,5Mpa
- Speed:≤10m/s
