| Malzeme Adı | Türü | Çalışma Yüzeyleri | Kauçuk Tipi | Çap | Sabit Eleman | Fiyat |
|---|---|---|---|---|---|---|
| LN SB-10-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 10 | N/A |
$5.03
-%40
$3.02
|
| LN SB-12-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 12 | N/A |
$5.03
-%40
$3.02
|
| LN SB-16A-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 16 | N/A |
$8.05
-%40
$4.83
|
| LN SB-16-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 16 | N/A |
$8.05
-%40
$4.83
|
| LN SB-17-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 17 | N/A |
$8.05
-%40
$4.83
|
| LN SB-20-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 20 | N/A |
$8.66
-%40
$5.20
|
| LN SB-25-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 25 | N/A |
$10.07
-%40
$6.04
|
| LN SB-30-B5VPFF | MEKANİK SALMASTRA | B5/V | Nbr | 30 | N/A |
$16.11
-%40
$9.67
|
Ürün Açıklaması

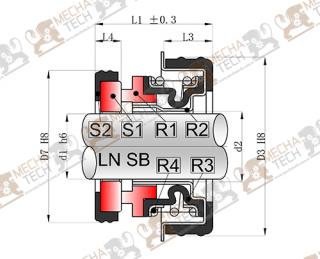

| d1 | d2 | D3 | D7 | L1 | L3 | L4 | |
| LN SB-10 | 10 | 11,0 | 27,0 | 23,0 | 18,0 | 7,5 | 4,0 |
| LN SB-12 | 12 | 14,0 | 32,0 | 25,0 | 19,2 | 9,0 | 5,0 |
| LN SB-16 | 16 | 18,0 | 41,0 | 31,0 | 21,8 | 10,0 | 5,0 |
| LN SB-16A | 16 | 18,0 | 41,0 | 35,0 | 26,0 | 9,5 | 9,0 |
| LN SB-17 | 17 | 18,5 | 35,0 | 30,0 | 24,0 | 8,0 | 6,0 |
| LN SB-20 | 20 | 221,0 | 45,0 | 35,0 | 22,5 | 11,5 | 5/10.3 |
| LN SB-25 | 25 | 26,4 | 52,0 | 41,3 | 31,0 | 12,0 | 8.5/11 |
| LN SB-30 | 30 | 31,0 | 58,0 | 48,0 | 29,0 | 12,5 | 8,5 |
| d1 | d2 | D7 | D3 | L1 | L4 | L3 | |
| LN SB6-10 | 10 | 10 | 23 | 27 | 10,5 | 5,0 | 7,5 |
| LN SB6-12 | 12 | 12/13 | 25 | 30 | 11 | 5,0 | 8,5 |
| LN SB6-17 | 17 | 17/16 | 31 | 35 | 16 | 7,0 | 9,5 |
| LN SB6-20 | 20 | 20 | 36 | 40 | 19 | 7,0 | 9,5 |
| LN SB6-25 | 25 | 25 | 42 | 50 | 19 | 8,5 | 13,5 |
| LN SB6-28 | 28 | 28 | 45 | 54 | 18,5 | 8,5 | 11,5 |
Tasarım Özellikleri
Tasarım Özellikleri
- Mini su pompalarında kullanılır
- Used in mini-water pumps
- Otomobil motor soğutma su pompasında kullanılır.
- Used in automobile engine cooling water pump
Parça Tanımları
Parça ve Malzeme listesi /Part and Material List
- S1:Sabit Yüzeyi/Stationary Seat Face: V,Q2,Q1
- S2:Kep/Cup:P,V,E
- R1: Döner Yüzeyi/Rotary Face:B,B5,Q2,Q1
- R2:Yay Bileziği/Spring Collar:F,G
- R3: Elastomerik Körük/Elastomeric Bellow:P,V,E
- R4:Yay/Spring:F,G
Çalışma Limitleri
LN SB Mekanik Salmastra/Mechanical Seal
Teknik Değerleri/Technical Parameters
- Sıcaklık:-20℃~140℃
- Basınç:≤0,5Mpa
- Çevresel Hız:≤10m/s
- Tempreture:-20℃~140℃
- Pressure:≤0,5Mpa
- Speed:≤10m/
